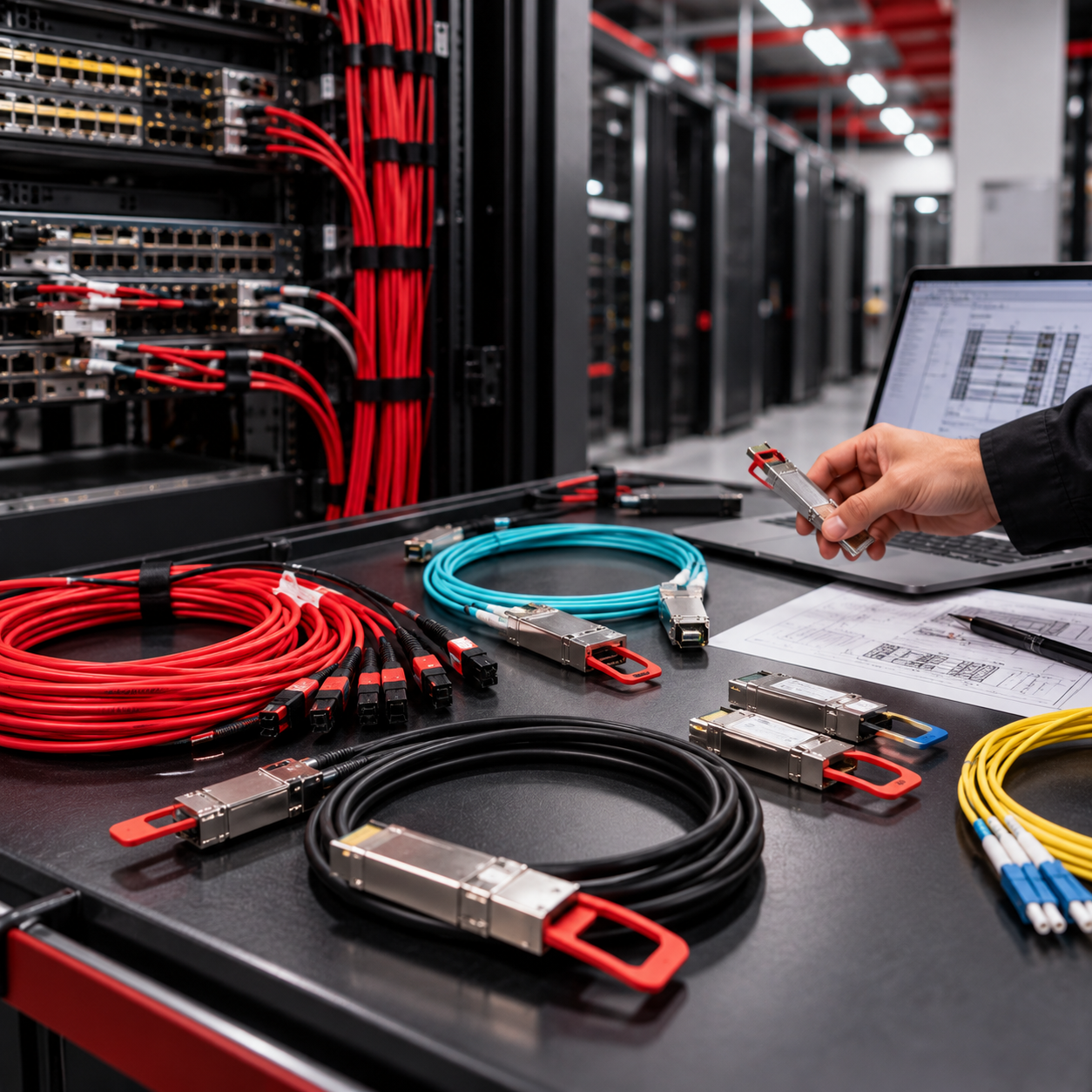

400G Connectivity Options: MPO, AOC, DAC, and Transceivers Compared
Bob joined Turn-key Technologies in 2011, and helped launch TTI Cable, which is the structured cabling division of TTI. Additionally, he created TTI Fiber which is our overseas affiliate for fiber optic cable manufacturing. With over 20 years of experience in both domestic and international trade and sales, Bob has dedicated himself to providing each and every client with the best solution for their networking needs. It has been under Bob’s supervision that he has created an equally experienced ...
Bob Gissubel
Updated on October 30, 2026
400G connectivity can be deployed through MPO/MTP fiber, Active Optical Cables (AOCs), Direct Attach Cables (DACs), or pluggable optical transceivers with separate fiber cabling. The right option depends on the equipment interface, required reach, port density, power requirements, and whether the link needs to remain modular after deployment.
The scale of high-speed optical deployment shows how quickly these decisions are becoming routine. Cignal AI reported that more than 42 million 400G+ datacom optical modules shipped in 2025, up more than 80% from the previous year.
For infrastructure teams, the practical task is matching the connectivity method to the link. DAC is usually best suited to very short connections, AOC extends optical reach in an integrated assembly, MPO supports parallel and high-density fiber architectures, and modular transceivers provide greater reach and component-level flexibility.
This guide compares those 400G connectivity options and explains where each fits based on distance, density, interface requirements, and deployment needs.
💡 TL;DR: Choosing the Right 400G Connectivity Option
-
DAC works best for the shortest 400G links. It is well suited to in-rack or adjacent-device connections where copper reach is sufficient and low power consumption matters.
-
AOC extends reach without separate optics. The fiber and optical components are integrated into one assembly, which simplifies deployment but reduces component-level flexibility.
-
MPO/MTP fits parallel optics and high-density fiber designs. The transceiver, fiber count, connector format, and polarity all need to match the intended 400G architecture.
-
Modular transceivers with separate fibers provide the most flexibility. They are a better fit when reach, serviceability, or future hardware changes are important.
-
Choose the connectivity method after confirming the equipment interface. Form factor, connector type, breakout support, fiber type, and supported reach should all be verified before ordering.
-
Do not treat all 400G links the same. Some use parallel fiber, some use duplex single-mode fiber, and others rely on short-reach copper or integrated optical assemblies.
What are the Main 400G Connectivity Options?
Most 400G links fall into four categories. Each serves a different role, so the best choice depends on the equipment interface, distance, and how the connection needs to be managed over time.
-
Direct Attach Cable (DAC)
Best suited to very short links, typically within a rack or between nearby devices. DAC uses copper conductors with fixed high-speed connectors and is attractive where low power consumption and simple deployment are priorities. -
Active Optical Cable (AOC)
AOC carries the signal over fiber but integrates the optical components into the cable assembly. It extends reach beyond passive copper while keeping installation straightforward because the optics and fiber arrive as one unit. -
MPO/MTP-Based Fiber
This option fits parallel-optic architectures and high-density structured cabling. The assembly has to match the transceiver’s fiber count, polarity, connector format, and media type. -
Modular Optical Transceivers With Separate Fiber
This approach keeps the optic and fiber cable separate, which provides more flexibility for longer reaches, component replacement, and future hardware changes.
The main distinction is how much of the link is integrated into one assembly. DAC and AOC combine the cable and endpoint interfaces, while MPO/MTP fiber assemblies work with compatible optical transceivers as part of a modular fiber connection. That difference affects serviceability, spare inventory, cable management, and how easily the link can be reconfigured later.
Read More: Fiber Optic Cable vs Copper Cable: Which One Will Power the Future of Your Network?
MPO vs AOC vs DAC vs Transceivers for 400G
The main 400G connectivity options differ in how they handle distance, fiber architecture, and serviceability. Start with the interface supported by the equipment, then compare the remaining options based on reach and how the link needs to be managed over time.
| Connectivity Option | Best Fit | Typical Deployment Profile | What to Verify |
|---|---|---|---|
| DAC | Very short 400G links | In-rack or nearby device-to-device connections where copper reach is sufficient | Supported cable length, host compatibility, cable bulk, and bend radius |
| AOC | Short-to-medium optical links | Direct switch-to-switch or rack-to-rack connections where an integrated optical assembly is preferred | Host compatibility, required length, form factor, and replacement strategy |
| MPO/MTP Fiber | Parallel optics and high-density structured fiber | Links that use multi-fiber optical lanes, patch panels, cassettes, or structured fiber pathways | Fiber count, polarity, connector type, fiber media, and transceiver interface |
| Modular Transceivers + Fiber | Longer or mixed-distance links | Architectures where optics and cabling need to be selected or serviced independently | Optical standard, reach, wavelength, connector interface, fiber type, and loss budget |
A few practical distinctions help narrow the choice:
-
DAC is usually the first option to evaluate when the endpoints are close enough for copper.
-
AOC makes sense when the link needs more reach but still benefits from a single integrated assembly.
-
MPO/MTP is most relevant when the 400G interface uses parallel optical lanes or the data center relies on structured, high-density fiber.
-
Modular transceivers with separate fiber are better suited to links where distance, serviceability, or future hardware changes require more flexibility.
When MPO Fiber Makes Sense for 400G
MPO/MTP fiber is most useful in 400G deployments that rely on parallel optical lanes or need high-density structured cabling between racks, rows, or equipment areas. It is not a universal requirement for 400G Ethernet, but it becomes important when the selected optical transceiver uses multiple fibers for transmit and receive.
How MPO Supports Parallel Optics
Parallel optics divide a 400G connection across several optical lanes instead of sending the full data rate over a single duplex fiber pair. Two common examples are:
| 400G Interface | Fiber Architecture | Typical Connector |
|---|---|---|
| 400GBASE-SR8 | Parallel Multimode Fiber | MPO-16 |
| 400GBASE-DR4 | Parallel Single-Mode Fiber | MPO-12 |
Current Cisco 400G implementations, for example, list 400GBASE-SR8 over MPO-16 OM4 multimode fiber to 100 meters and 400GBASE-DR4 over MPO-12 single-mode fiber to 500 meters. These are interface-specific examples, so the transceiver datasheet should always determine the required fiber count, connector, media type, and reach.
Where MPO Fits Best
MPO is a strong fit when the data center needs more than a simple point-to-point patch cable. It works well in structured fiber systems that use trunks, patch panels, cassettes, or breakout assemblies, especially where many optical lanes need to be presented through a compact interface.
That makes MPO particularly relevant for dense switch environments, leaf-spine architectures, parallel-optic links, and repeatable pre-terminated cabling between equipment areas. It also gives infrastructure teams a way to keep the permanent fiber plant separate from the active optics, which can simplify later equipment changes.
MPO Design Considerations
The important planning point is that the transceiver defines the cabling requirements.
A 400G optic may require multimode or single-mode fiber, MPO-12 or MPO-16, a specific polarity method, pinned or unpinned connectors, and a defined insertion-loss budget. Cassette, adapter, and breakout compatibility also need to be checked before ordering.
Two 400G links can use the same switch form factor and still require very different fiber assemblies. The correct MPO configuration should therefore be derived from the optical interface and the full channel design, not selected as a generic “400G cable.”
TTI Cable’s MTP®/MPO Assemblies fit this type of high-density structured fiber architecture, where fiber count, polarity, connector format, and transceiver requirements have to be defined together.
When Active Optical Cables Are a Better Fit
Active Optical Cables (AOCs) are a good fit for 400G links that need more reach than passive copper but do not require the flexibility of separate transceivers and fiber patch cords. The optical conversion components are built into the cable assembly, so the connection behaves like a direct cable from the installer’s point of view.
That makes AOC especially useful when the link is fixed, the distance is known in advance, and simplifying installation is more important than replacing optics and cabling independently.
Best AOC Use Cases
AOC works well for switch-to-switch, rack-to-rack, and other short-to-medium 400G connections where DAC becomes impractical because of reach, cable weight, or routing constraints.
Compared with copper, fiber inside an AOC is lighter and easier to route through dense racks and cable pathways. That can matter in environments with many high-speed ports, where large bundles of copper assemblies can make airflow, bend radius, and connector access harder to manage.
AOC is also useful in deployments where teams want a pre-terminated optical connection without separately specifying two transceivers and a fiber patch cable. Once host compatibility and length are confirmed, the assembly can be installed as a single component.
AOC Advantages and Tradeoffs
The main advantage of AOC is integration. The optics and fiber are engineered as one assembly, which reduces the number of individual components that have to be matched during deployment.
That simplicity comes with a tradeoff. If one optical endpoint fails, or if the required link length changes, the entire cable may need to be replaced. With modular transceivers and separate fiber, the failed optic can often be replaced without disturbing the installed cabling.
AOC also requires careful host compatibility checking. A connector may fit mechanically while the switch, NIC, or other equipment does not support that specific active cable implementation.
For 400G projects, Active Optical Cables make the most sense when the connection is relatively stable, the required distance is known, and a direct optical assembly is preferable to a modular link.
Read More: Maximizing High-Speed Data Transmission and Data Center Connectivity with Active Optical Cable (AOC)
When Direct Attach Copper is the Right Choice
Direct Attach Cable (DAC) is usually the first option to evaluate for very short 400G connections. It carries the electrical signal over copper and uses fixed high-speed connectors on both ends, making it a practical fit for links where the devices are close enough that optical conversion is unnecessary.
For data center teams, the main appeal is simplicity. A passive DAC can connect compatible ports directly without separate transceivers or fiber patch cords, which reduces component count and typically keeps power consumption lower than optical alternatives.
Best DAC Use Cases
DAC fits best in same-rack and nearby device-to-device connections, especially between servers, switches, storage systems, and other equipment with compatible 400G interfaces. It is particularly useful when:
-
the required distance is only a few meters,
-
the route is straightforward,
-
low power is a priority,
-
and the cable can be installed without creating excessive bundle size or airflow restrictions.
In high-density racks, though, copper starts to become harder to manage as link count increases. Cable diameter, bend radius, and the physical weight of large bundles can matter just as much as electrical reach.
DAC Advantages and Limitations
The biggest advantage of DAC is efficiency at short reach. Passive assemblies avoid the optical transmit and receive components used by AOCs and pluggable transceivers, which can reduce both power draw and the number of active components in the link.
The limitation is distance. As 400G links extend beyond a few meters, copper becomes less attractive because of signal-loss constraints and cable bulk. Even when a longer DAC is technically supported, routing a thick copper assembly through a dense rack or cable pathway may create practical problems.
TTI Cable’s Direct Attach Cable options are most relevant to short, compatible device-to-device links where the benefits of passive copper outweigh the reach and cable-management limitations.
Read More: Why Direct Attach Cables Are Gaining Popularity in Data Centers
When Modular Transceivers and Separate Fiber Make More Sense
Modular optical transceivers with separate fiber cabling are usually the better fit when a 400G link needs more reach, easier serviceability, or greater flexibility across different optical standards.
Unlike DAC and AOC, the optic and the cable are specified as separate components. That gives infrastructure teams more control over the transceiver type, fiber media, connector interface, and reach without replacing the entire connection as one assembly.
Where Modular Transceivers Fit
This approach is especially useful for:
-
longer rack-to-rack or row-to-row links,
-
connections that extend beyond practical AOC or DAC distances,
-
structured fiber plants that already exist,
-
mixed environments where different ports require different reaches,
-
and deployments where failed optics need to be replaced independently of the cabling.
It also works well when the same physical fiber infrastructure may support different generations of active equipment over time.
Advantages and Tradeoffs
The main advantage is flexibility. A 400G optical transceiver can be selected to match the required reach and fiber architecture, while the cabling remains a separate part of the channel.
That can make maintenance easier. If an optic fails, the transceiver can often be replaced without disturbing the installed fiber. If the network later moves to a different 400G optical interface, the existing cabling may remain usable if the fiber type, connector, and loss budget are compatible. The tradeoff is additional specification work. Teams need to verify:
-
transceiver form factor,
-
host compatibility,
-
optical standard,
-
wavelength architecture,
-
connector interface,
-
fiber type,
-
supported reach,
-
and insertion-loss budget.
For 400G, form factors such as QSFP-DD and OSFP are common, but the supported optics vary by platform. The transceiver datasheet and equipment compatibility matrix should therefore drive the final selection. TTI Cable’s Fiber Optical Transceivers are relevant when the link requires modular optics that can be selected independently from the installed fiber infrastructure.
How Distance Changes the 400G Connectivity Decision
Distance is one of the fastest ways to narrow the available 400G connectivity options, but it should always be considered alongside the equipment interface. The same 400G port may support several connection types, each with different reach, power, and cabling requirements. A practical way to approach the decision is to divide the deployment by where the endpoints sit in the data center.
Inside the Rack
For very short links, DAC is usually the first option to evaluate. Server-to-switch and switch-to-switch connections within the same rack often fall within the practical reach of passive copper. In these cases, DAC keeps the connection simple and avoids the power and component count associated with optical conversion.
AOC may still make sense when cable weight, routing, or density makes copper harder to manage, especially in racks with many high-speed ports.
Rack-to-Rack and Row-to-Row
As the distance increases, AOC and fiber-based connectivity become more practical. AOC works well when the connection is fixed, and the required length is known in advance. MPO/MTP-based fiber becomes more attractive when the data center uses structured pathways, patch panels, or high-density fiber trunks between equipment areas.
Modular transceivers with separate fiber are also common in this range when teams want individual optics to remain replaceable or need greater flexibility in how the channel is routed.
Longer Data Center Runs
For longer links, modular optical transceivers and structured fiber usually provide the most flexibility. Single-mode fiber becomes increasingly relevant as reach requirements extend beyond typical multimode or integrated-cable applications. The selected 400G optical standard determines the supported distance, wavelength architecture, connector interface, and fiber type.
| Deployment Distance | Options to Evaluate First | Main Planning Consideration |
|---|---|---|
| Very Short/In-Rack | DAC, AOC | Power, cable bulk, bend radius |
| Rack-to-Rack | AOC, MPO/MTP fiber, modular optics | Density, routing, serviceability |
| Row-to-Row | MPO/MTP fiber, modular optics | Structured cabling and loss budget |
| Longer Data Center Runs | Modular transceivers + fiber | Reach, fiber type, optical standard |
These categories are planning guides rather than fixed distance limits. The actual maximum reach should always come from the selected transceiver, AOC, or DAC specification and the equipment vendor’s compatibility documentation.
Read Next: How to Install Fiber Optic Cables for Reliable Network Performance
400G Breakout Connectivity Options
Breakout connectivity lets one high-speed port support multiple lower-speed links when the switch, transceiver, and cabling are designed for channelization. For 400G, the most common example is a 400G port breaking out into four 100G connections.
This can be useful during phased upgrades, where the switching layer moves to 400G before every downstream device is ready for the same port speed.
400G to 4×100G Breakout
A 400G-to-4×100G design can be implemented several ways depending on the equipment. In one approach, a 400G host port connects to a breakout cable that presents four separate 100G endpoints. In another, a compatible parallel-optics transceiver uses optical lanes that can be routed through an MPO breakout assembly to supported 100G endpoints. In both cases, the switch, transceiver, and cable assembly must support the intended breakout configuration.
The important point is that the breakout behavior comes from the supported port and transceiver architecture. The cable only carries the lane mapping that the equipment is designed to use.
What to Verify Before Using Breakout Cables
Before specifying a breakout connection, confirm:
-
The switch port supports breakout mode.
-
The target speeds are supported, such as 400G to 4×100G.
-
The transceiver supports the same channelization scheme.
-
The connector and fiber count match the breakout design.
-
The lane mapping is documented from the 400G side to each lower-speed endpoint.
-
Every breakout leg supports the required reach.
Breakout designs can simplify migration, but they also introduce more opportunities for lane-mapping errors and compatibility issues. A cable that fits physically is not enough. The port mode, transceiver, connector format, and breakout assembly must all match the same architecture.
Multimode vs Single-Mode Fiber for 400G
Both multimode and single-mode fiber can support 400G, but they are used in different optical architectures and reach ranges. The right choice comes from the transceiver specification and the physical distance the link needs to cover.
| Fiber Type | Typical 400G Role | Common Connector Approach | Main Planning Consideration |
|---|---|---|---|
| Multimode Fiber | Short-reach data center links | MPO or LC, depending on the optic | Reach is more limited, but it fits dense in-building deployments well |
| Single-Mode Fiber | Medium- and long-reach links | MPO for parallel optics or LC for duplex optics | Supports greater reach and more optical architectures |
Multimode Fiber
Multimode fiber is commonly used for short 400G links inside the data center. Parallel-optic interfaces such as 400GBASE-SR8 use multiple fibers and an MPO connector to carry several optical lanes at once.
This makes multimode fiber a practical fit for short switch-to-switch or rack-to-rack connections where the required reach remains within the supported limit of the selected optic. The main constraint is distance. As the link extends farther, multimode options become less practical and single-mode architectures usually provide more flexibility.
Single-Mode Fiber
Single-mode fiber supports a broader range of 400G optical interfaces and longer reaches.
Some 400G designs use parallel single-mode fiber with MPO, while others use duplex single-mode fiber with an LC connector and wavelength multiplexing. In the latter case, several optical wavelengths can be transmitted over the same fiber pair, reducing the number of physical fibers required.
That distinction matters because two 400G links can both use single-mode fiber while relying on very different connector and transceiver architectures. For infrastructure planning, fiber type should follow the optic rather than the other way around. Confirm the required reach, connector, wavelength architecture, and loss budget first, then specify the matching fiber plant.
Read More: Benefits of Fiber Optic Cable for Large Networks: The Smartest Upgrade You’ll Make This Year
Common 400G Connectivity Specification Mistakes
Most 400G deployment problems start before installation, when the link is specified with incomplete assumptions about the equipment, reach, or optical architecture.
-
Choosing the cable before confirming the transceiver
The transceiver or host interface should define the connector type, fiber media, supported distance, lane structure, and breakout behavior. Starting with the cable can lead to a physically compatible assembly that does not support the intended link. -
Assuming every 400G optical link uses MPO
Some 400G interfaces use parallel MPO-based fiber, while others use duplex single-mode fiber with LC connectivity. The optical standard determines the cabling approach. -
Treating DAC, AOC, and modular optics as interchangeable
All three can support high-speed links, but they differ in reach, power use, cable routing, serviceability, and replacement strategy. -
Ignoring breakout requirements
A 400G port may support 4×100G or another breakout mode, but the switch, transceiver, and cabling all need to support the same channelization scheme. -
Overlooking form-factor compatibility
QSFP-DD, OSFP, and other high-speed form factors are not automatically interchangeable. Mechanical fit, electrical compatibility, firmware support, and platform approval all need to be checked. -
Failing to account for the complete optical loss budget
Patch panels, adapters, cassettes, and additional mating points add insertion loss. The full channel has to remain within the limits of the selected optic. -
Planning only for the current hardware generation
Switches and transceivers may be replaced sooner than the installed fiber plant. Where practical, the cabling architecture should allow equipment changes without forcing unnecessary replacement of the permanent infrastructure.
A good specification should describe the entire link from one active port to the other. That includes the form factor, transceiver or cable type, connector, fiber media, reach, lane mapping, intermediate hardware, and far-end interface.
Read Next: Custom Cabling Checklist: 10 Questions to Answer Before Manufacturing Begins
How to Choose the Right 400G Connectivity Option
A practical 400G selection process starts with the equipment and works outward. The goal is to eliminate incompatible options early, then compare the remaining choices based on reach, physical design, and how the link will be maintained.
1. Confirm What the Equipment Supports
Start with the active ports on both ends of the link. Identify the supported 400G Ethernet interface, form factor, approved transceivers, DAC and AOC support, connector type, and any available breakout modes. This step usually removes several options immediately.
For example, a port designed around a particular QSFP-DD optical interface may require a specific connector and fiber type, while another 400G port may support a short-reach DAC or AOC directly.
2. Match the Option to the Actual Distance
Use the real cable path, not the straight-line distance between devices. A short in-rack connection may favor DAC. Rack-to-rack links may be better suited to AOC or structured fiber. Longer runs typically point toward modular transceivers and separate fiber.
The supported reach of the exact cable or optic should always be verified before ordering.
3. Decide Whether the Link Should Be Direct or Structured
This is one of the most important architectural choices.
-
Direct Connection - makes sense when two devices can remain connected by one fixed DAC or AOC assembly.
-
Structured Connection - usually better when the link needs patch panels, cassettes, cross-connects, equipment moves, or a fiber plant that can remain in place through future hardware changes.
That distinction often determines whether an integrated cable or a separate fiber-and-transceiver design is the better fit.
4. Check the Physical Installation
A valid electrical or optical design can still create installation problems. Review:
-
cable diameter and weight,
-
bend radius,
-
rack density,
-
pathway fill,
-
connector access,
-
airflow,
-
and labeling space.
These details matter most in dense 400G environments where many high-speed links share the same rack or cable pathway.
5. Decide How Much Modularity You Need
DAC and AOC reduce component count because the cable and endpoint interfaces are integrated into one assembly.
Modular transceivers and separate fiber require more components, but they allow the optic and cabling to be replaced independently. That can be useful when different links require different reaches or when the active hardware is expected to change before the cabling does.
6. Validate the Complete Channel
Before procurement, document the link from end to end:
Port → Form Factor → Transceiver or Cable → Connector → Fiber Type → Lane Mapping → Intermediate Hardware → Far-End Interface
For optical links, also confirm insertion-loss limits and the number of mated connections. For breakout designs, document each resulting endpoint and lane assignment. A clear end-to-end specification gives engineering, procurement, and installation teams the same reference point and reduces the chance of discovering a compatibility problem during deployment.
Planning 400G Connectivity for Future Network Upgrades
Planning beyond 400G is less about predicting the exact next interface and more about avoiding choices that unnecessarily lock the cabling to one hardware generation.
Preserve the Parts That Are Expensive to Replace
Permanent fiber pathways, trunks, patch panels, and backbone cabling usually require more effort to replace than transceivers or switches. Where possible, specify these components so they can remain useful through later equipment refreshes.
That means documenting fiber type, connector format, polarity, insertion-loss limits, and available capacity well enough to evaluate future optics against the existing infrastructure.
Expect the Optical Architecture to Change
A future upgrade may not use the same lane count, wavelength scheme, connector, or transceiver format as the current 400G deployment.
Some migrations may reuse the installed fiber with different optics. Others may require new breakout assemblies, cassettes, or patching. Keeping those transition components modular makes changes easier to manage without disturbing the entire cable plant.
Build Capacity Into the Physical Layer
Higher-speed interfaces can change how many fibers, ports, and patching points are concentrated in a given rack or pathway.
When planning 400G today, consider whether the existing pathway space, patch-panel density, spare fibers, and connector access can absorb additional high-speed links later. A small amount of unused capacity can be far easier to justify during the initial build than a cabling redesign during an active network upgrade.
Keep the Architecture Easy to Understand
Accurate records become more valuable as the network evolves.
Document how trunks, breakouts, cassettes, transceivers, and equipment ports relate to one another, especially where 400G ports are divided into lower-speed connections. When hardware changes, that documentation makes it much easier to determine what can stay, what needs to change, and where compatibility needs to be revalidated.
The goal is a 400G design that can be modified without forcing unnecessary changes to the permanent infrastructure.
Read Next: How to Future-Proof Your Network Cabling Infrastructure
The Right 400G Connectivity Choice Starts With the Link
A sound 400G design comes from matching the connection method to the actual link requirements. DAC, AOC, MPO/MTP fiber, and modular optical transceivers all have a place, but they solve different problems. Before finalizing a 400G deployment:
-
Confirm the equipment interface and supported form factor
-
Match the connection type to the required distance
-
Verify connector, fiber, polarity, and breakout requirements
-
Consider cable density, routing, and serviceability
-
Check the full optical or electrical path before ordering
-
Document the final architecture for future maintenance and upgrades
The most important planning decision is to avoid treating 400G connectivity as a single cable choice. A short in-rack link may favor DAC, while a structured parallel-optic design may require MPO/MTP. AOC can simplify fixed optical links, and modular transceivers provide more flexibility when reach or future changes matter.
TTI Cable supports these architectures with MTP®/MPO Assemblies, Active Optical Cables, Direct Attach Cables, and Fiber Optical Transceivers. The right starting point is to define the link requirements first, then select the component set that matches them.
Frequently Asked Questions
What is QSFP-DD, and why is this form factor common for 400G Ethernet?
QSFP-DD is a high-density pluggable transceiver form factor used across many 400G Ethernet platforms. It supports eight electrical lanes, allowing compatible equipment to deliver 400G within a compact switch interface. Depending on the optical module, the connection may use MPO/MTP, duplex LC fiber, AOC, or DAC.
How does the 400G wavelength architecture affect optical transceiver selection?
The wavelength architecture determines how optical data is transmitted across the fiber. Some 400G optical transceivers use parallel fibers, while others transmit multiple wavelengths over a duplex single-mode fiber pair. That affects fiber count, connector type, modulation, supported reach, and the optical loss budget.
Can a 400G Ethernet port connect to 100G QSFP28 equipment?
Yes, if the switch and port support the required breakout mode. A 400G port can support configurations such as 4×100G, but the switch software, lane mapping, breakout cable or optics, and far-end QSFP28 interfaces all need to support the same design.
How much bandwidth does 400G provide for AI and high-performance workloads?
400G Ethernet provides an aggregate line rate of 400 gigabits per second. That capacity can support demanding workloads such as AI training, large-scale data replication, analytics, and high-capacity interconnection. Actual throughput and latency still depend on the full network architecture, including switching, congestion, transport protocols, and server design.
Is 400G infrastructure a good foundation for moving to 800G?
It can be, especially when the fiber infrastructure, pathways, connector strategy, and documentation were planned with later upgrades in mind. Moving from 400G to 800G does not guarantee that every cable or optic can be reused, since lane counts, modulation formats, form factors, and optical interfaces may change.
